Atlantis - Drainage Log

Atlantis - Drainage Log - Flo-Log & Flo-Pipe

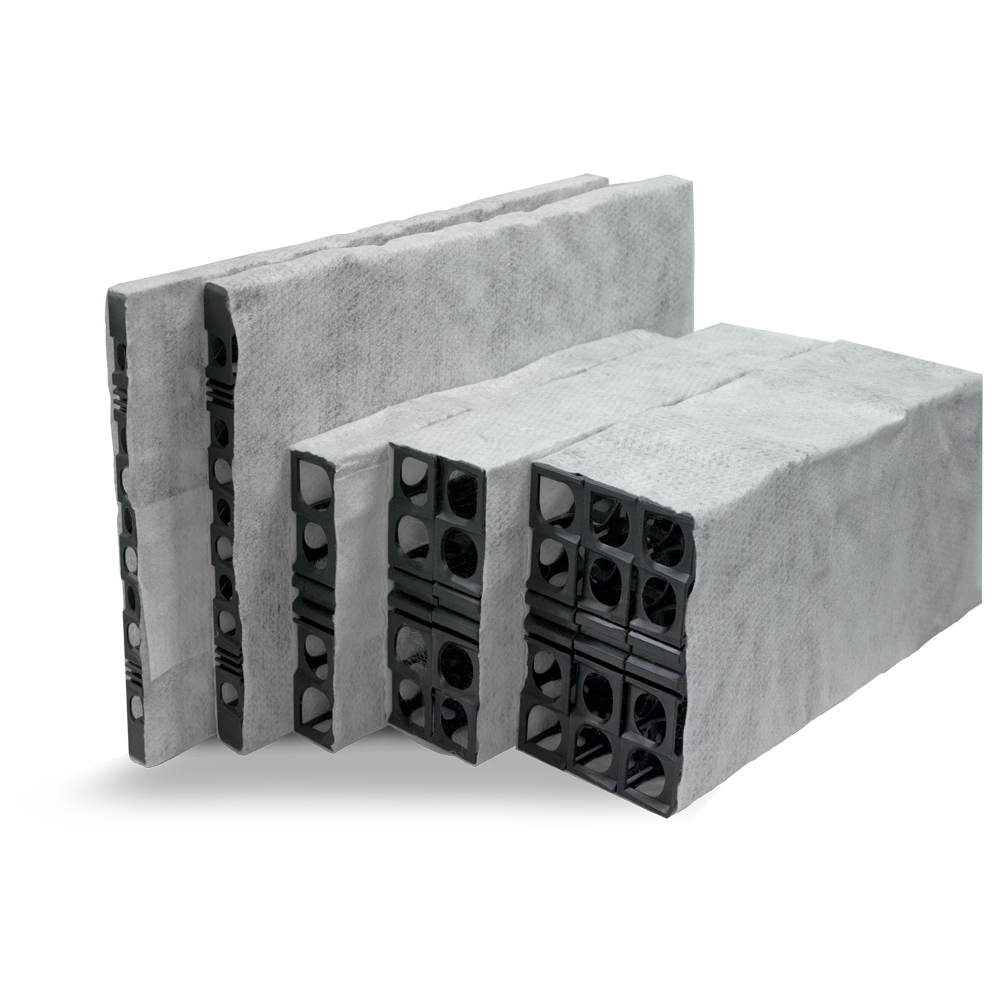

Atlantis Flo-Log® Strip Filter Drains are prefabricated drainage composites for the efficient filtering of groundwater. All Atlantis Flo-Log® Strip Filter Drains are encapsulated with a high flow geotextile that prevents long term blockage of the unit by excluding the ingress of fine soil particles. The drainage structure and geotextile are made from polypropylene. The polypropylene is inert to a wide range of acids and alkalis likely to be found in a subsurface environment.

Atlantis drainage systems provide more efficient drainage capacities than imported natural materials such as crushed aggregate and conventional pipe systems. The Atlantis prefabricated drainage products are lightweight, easy to handle and install, providing a more cost effective method of drainage than traditional methods. The Atlantis range of Flo-Log® Strip Filter Drains require minimal trench excavation

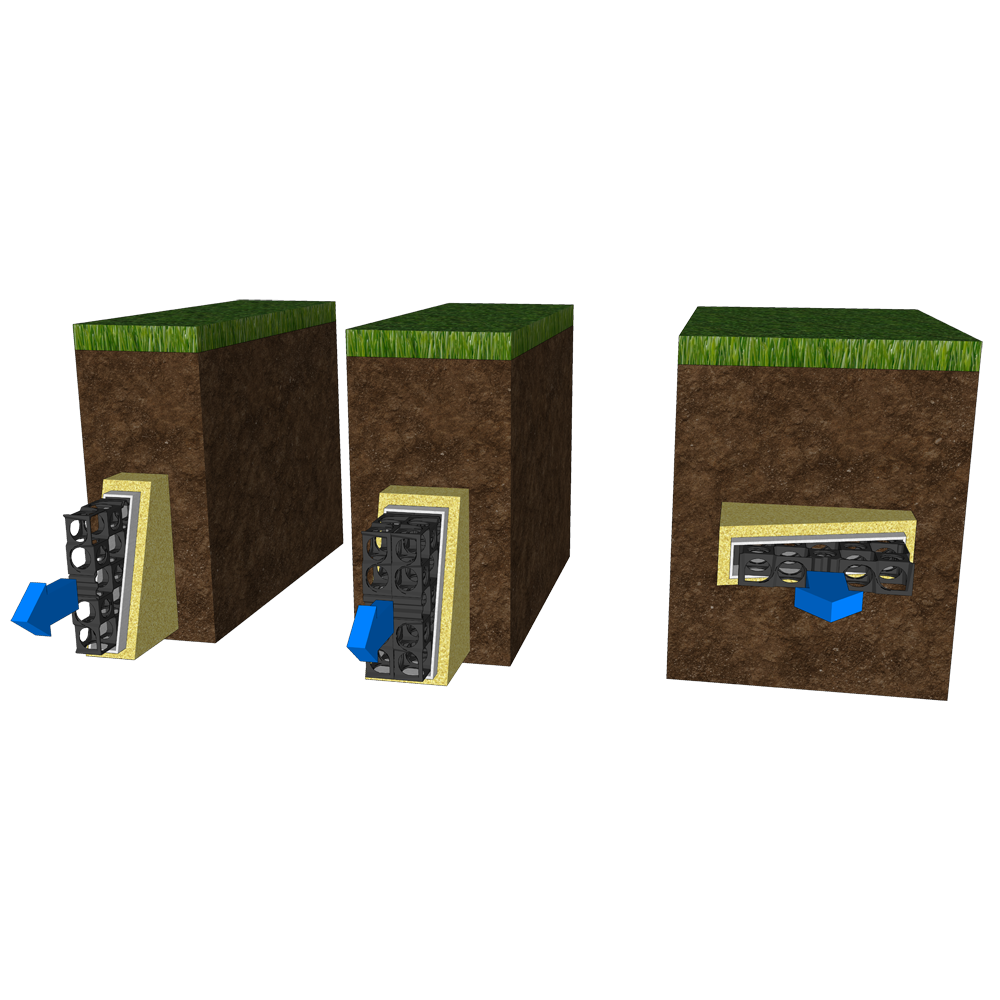

and come in a wide selection of depths and thicknesses for a variety of applications and site conditions. A 50mm layer of washed river sand is recommended to encapsulate the Flo-Log® Strip Filter Drains to enhance the filtration of water
and fine soil particles extending the life of the installation.

Applications Drains for Agriculture Drains for mining Ditch and strip drainage Retaining wall drainage Edge drains for roads Sports field drainage systems Drainage retaining walls Other requirements for dispersion of water in the subsoil Benefits Easy installation Economic No maintenance costs Simple connection to wells and pipes Light and easy to transport Very high flow rate of 80 l min High resistance to compression High flow velocity Economical and modular design Downloads Atlantis Flo-Log Specs
