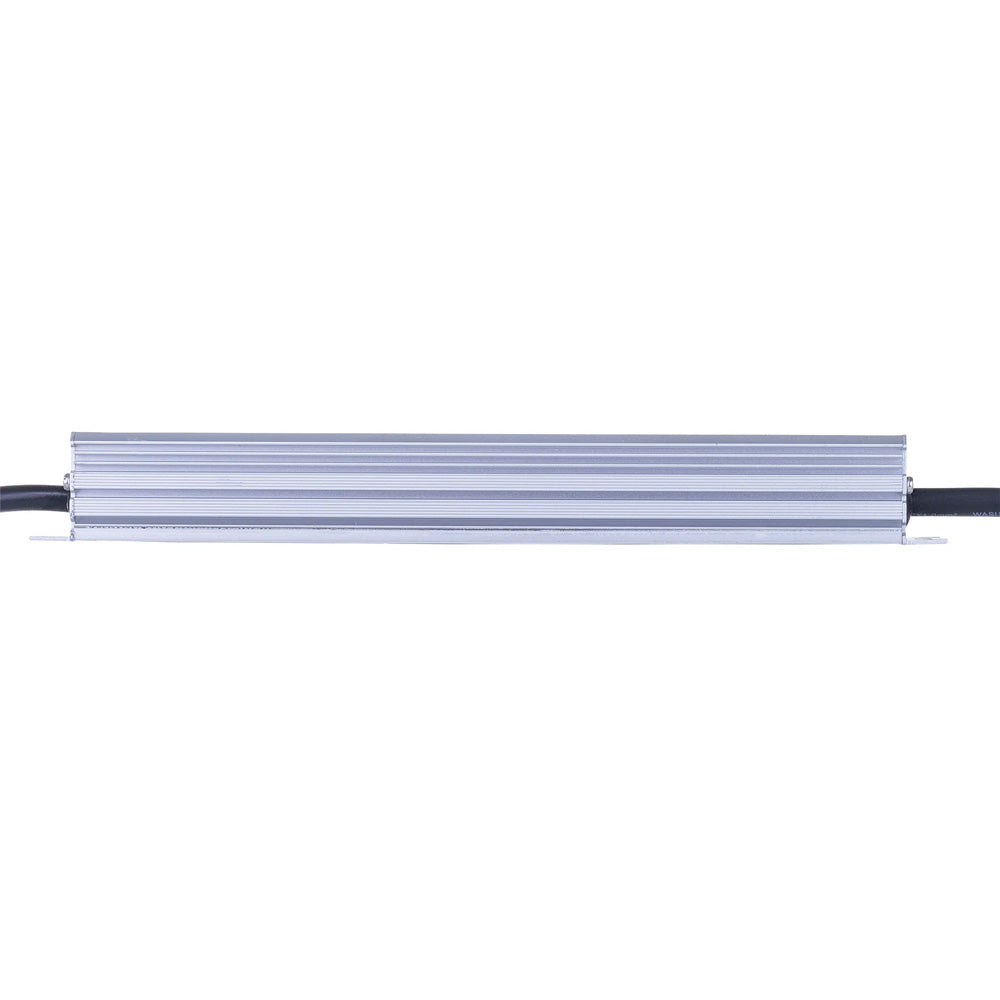

Havit 12v DC Weatherproof High Power LED Drivers

Havit 12v DC Weatherproof High Power LED Drivers

For a constant voltage through your outdoor LED fittings check out our Havit 12v DC Weatherproof High Power LED Drivers. The LED drivers feature different variants including 30W, 60W, 100W, 150W, 200W or 275W. In addition, too two slimline variants if you're after a more compact LED driver. Perfect for different commercial or residual use cases whether you want to connect 2 3w LED spotlights or 10 LED pond lights. The high power factor makes these LED drivers great for running more than one LED fitting with its high energy efficiency. Check out our range of Havit lighting and cables for more.

To choose the correct LED driver for your application, calculate the total wattage of your all LED fixtures. It is recommended to be between 40% and 80% of the total capacity of the driver.

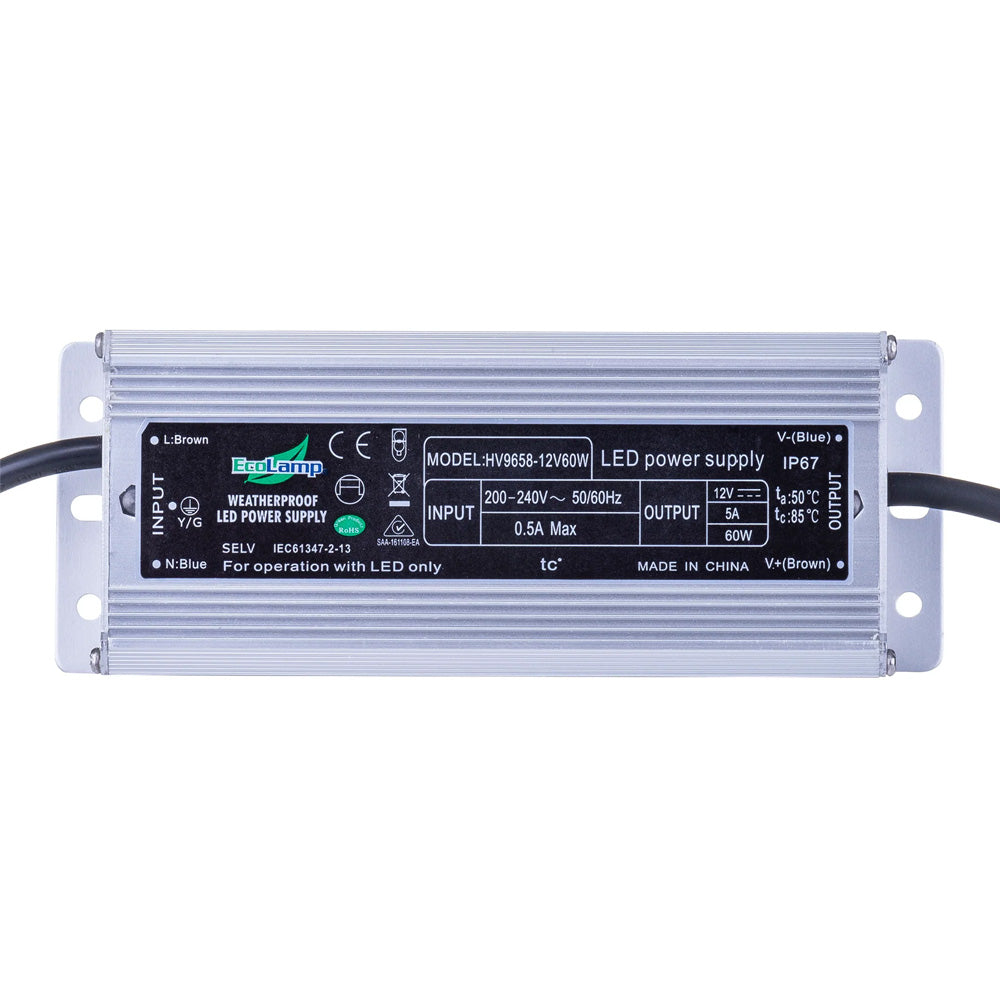

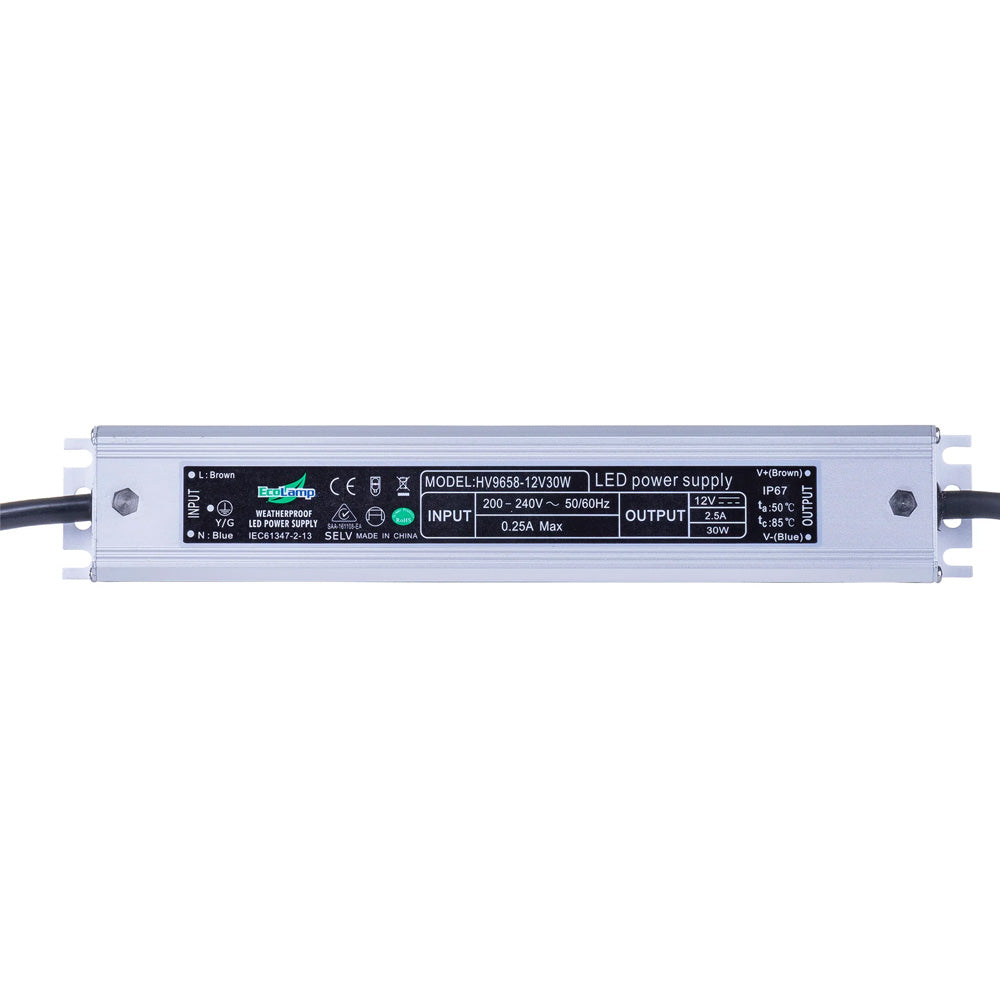

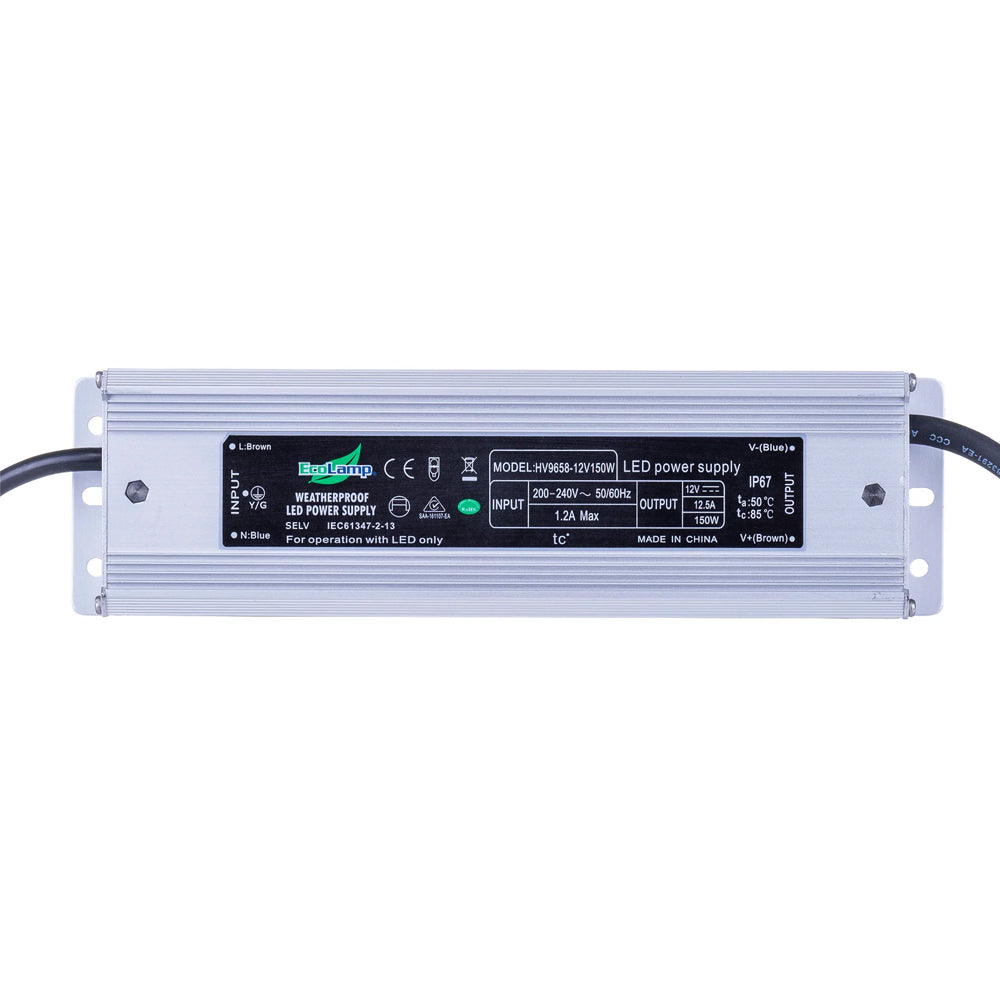

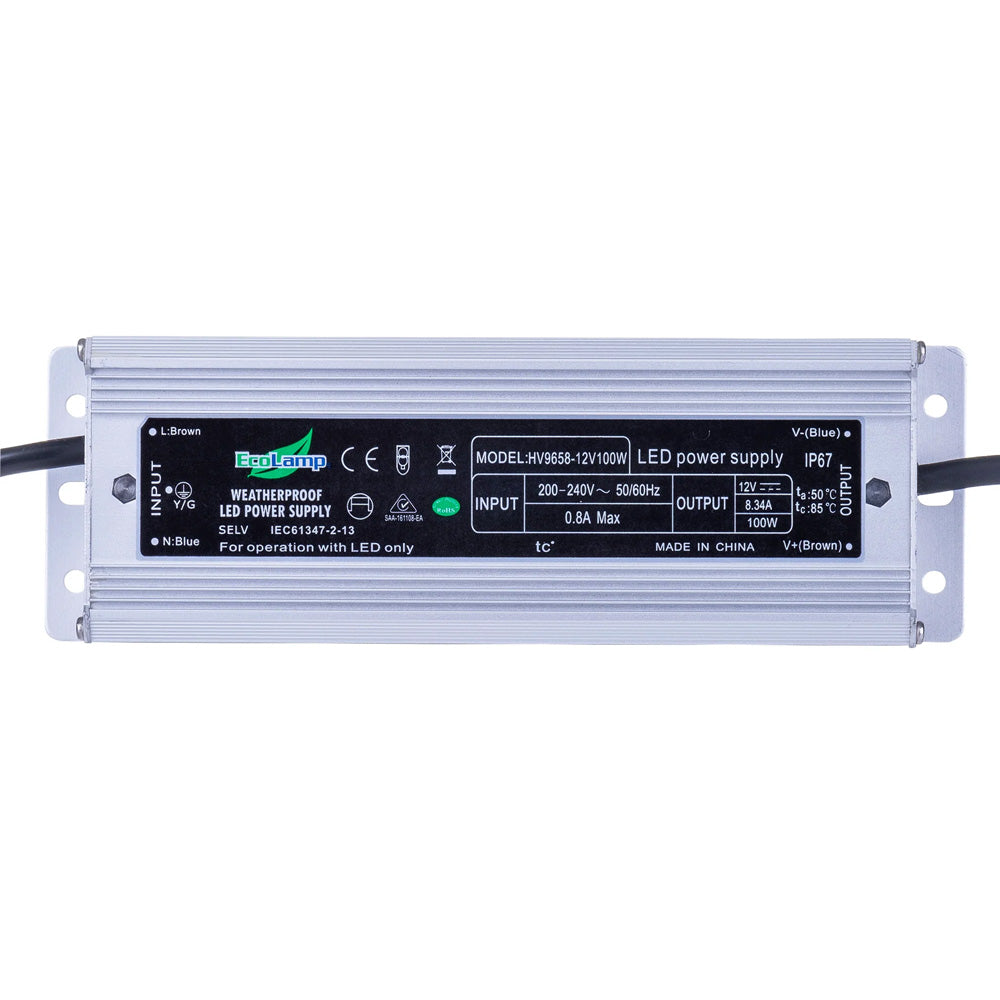

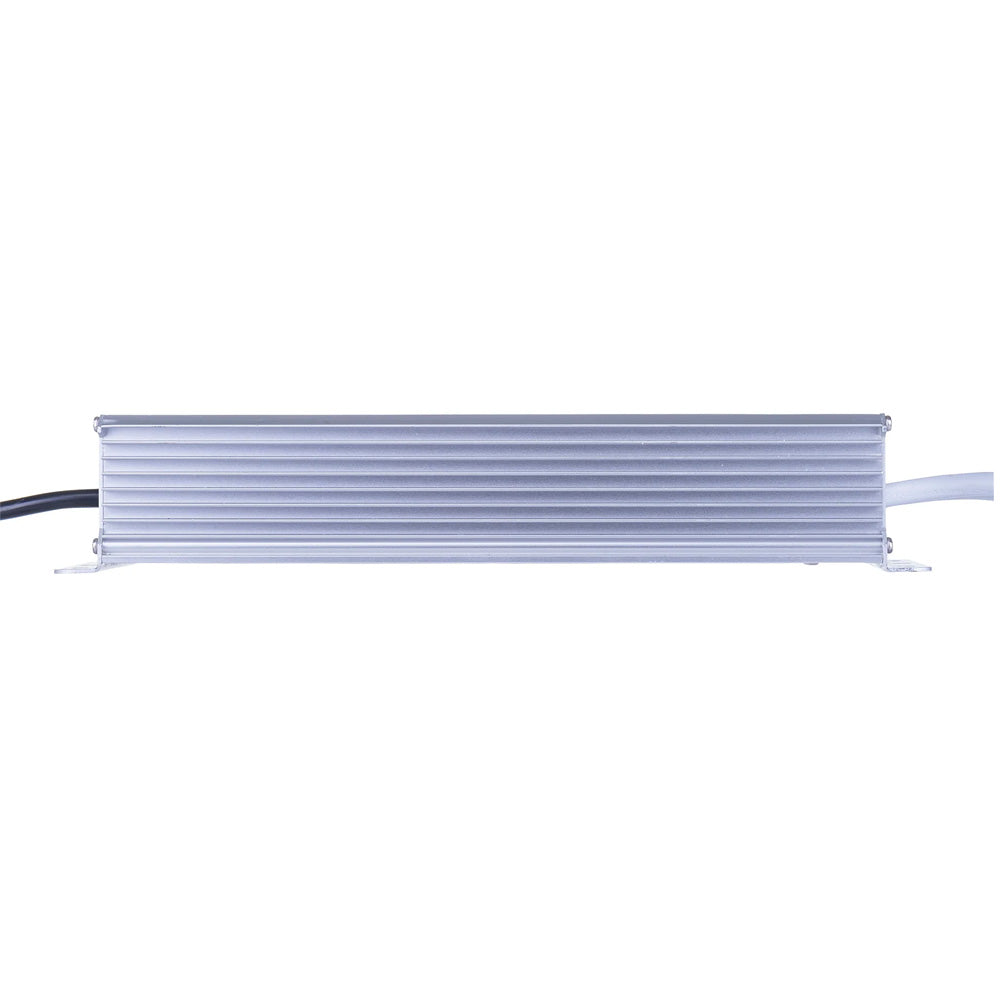

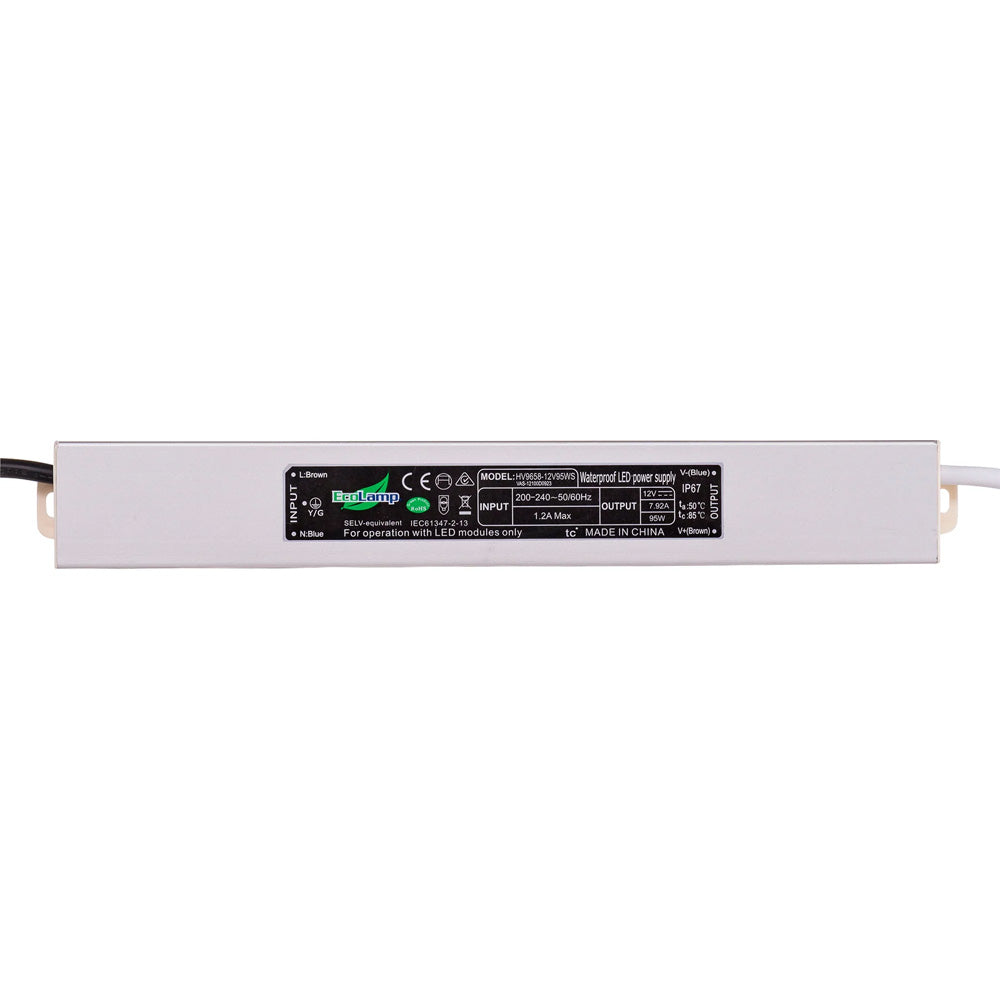

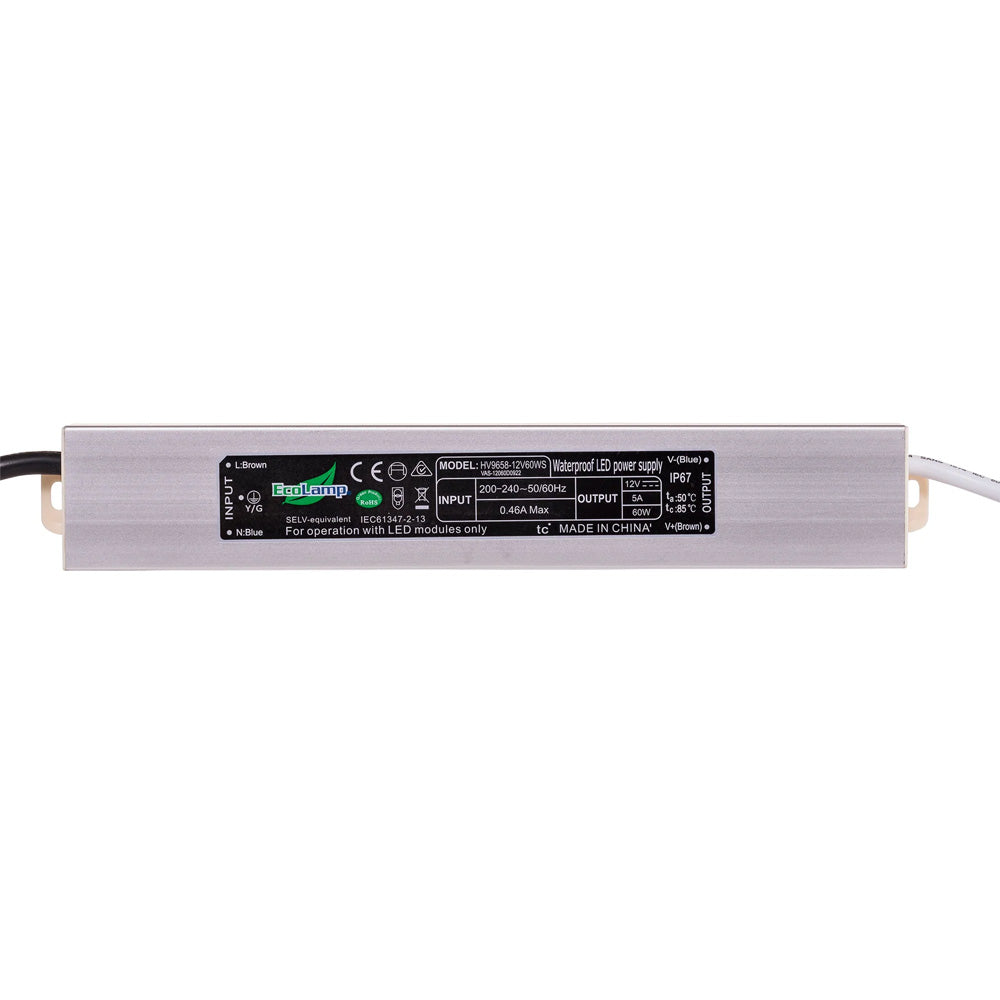

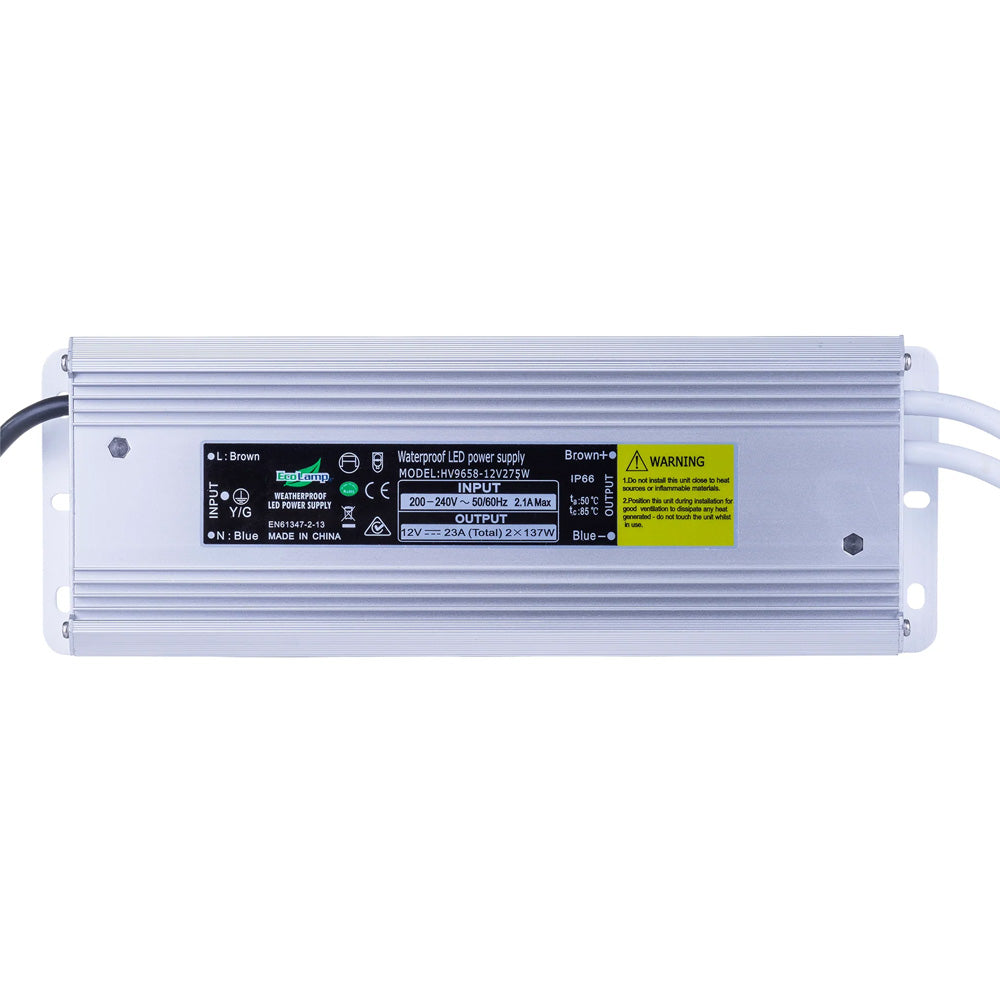

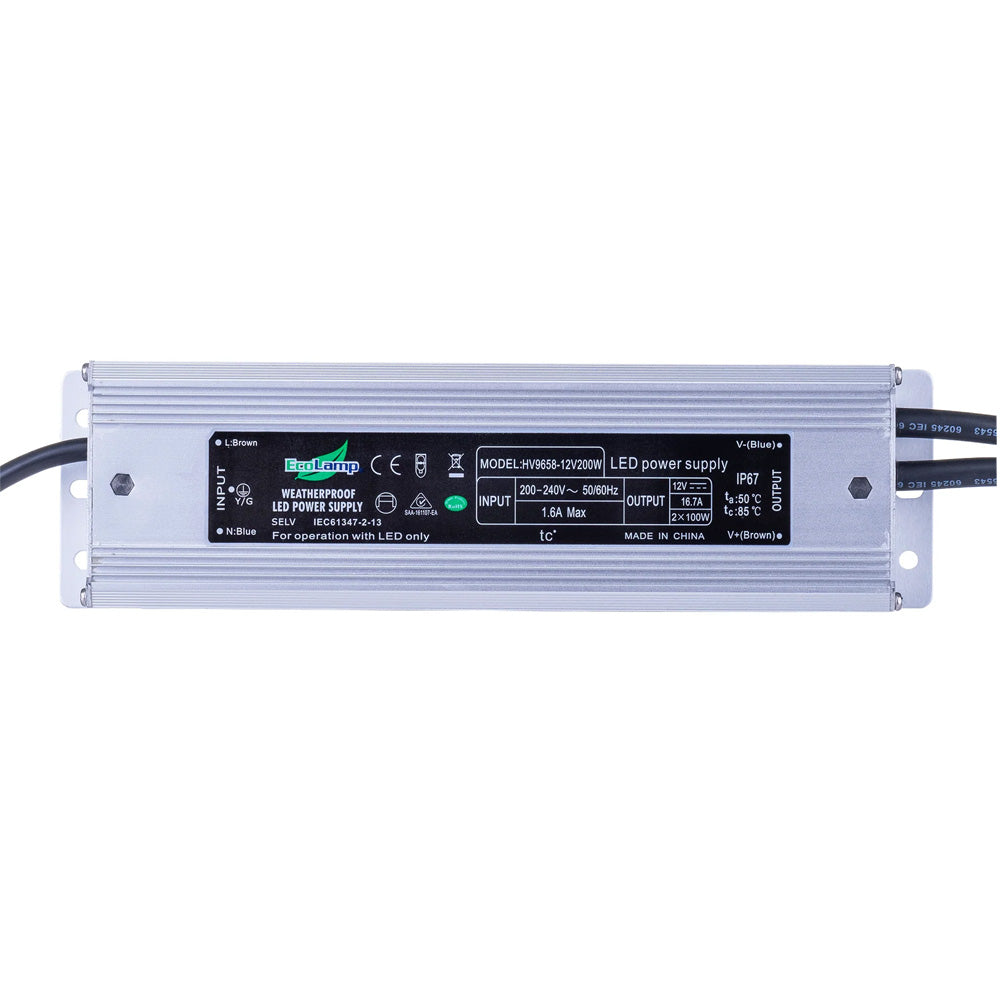

Specifications and Features Waterproof LED Driver. Flex and Plug Included. IP rating: IP66. Input Voltage: 240v AC.  Output Voltage: Available in either 12v DC Constant Voltage. Output Power: 30w, 60w, 100w, 150w, 200w (2x 100s) or 275w (2x 137.5w). Recommended maximum load: 24w, 48w, 80w, 120w, 160w, 220w. Minimum Load: 3w, 6w, 10w, 15w, 20w, 27w. Slimline variants are available at 60w or 95w. Slimline Variants have a maximum load of 48w and 80w Slimline variants have a minimum load of 6w and 9w. 3 Years Replacement. Downloads 30, 60 and 100w Installation Guide. 60w and 95 w Slimline Installation Guide. 100w, 200w, 275w Installation Guide. Data Sheets 30w Data Sheet. 60w Data Sheet. 60w Slimline Data Sheet. 95w Slimline Data Sheet. 100w Data Sheet. 150w Data Sheet. 200w Data Sheet. 275w Data Sheet.
