Hunter Soil Clik Moisture Sensor

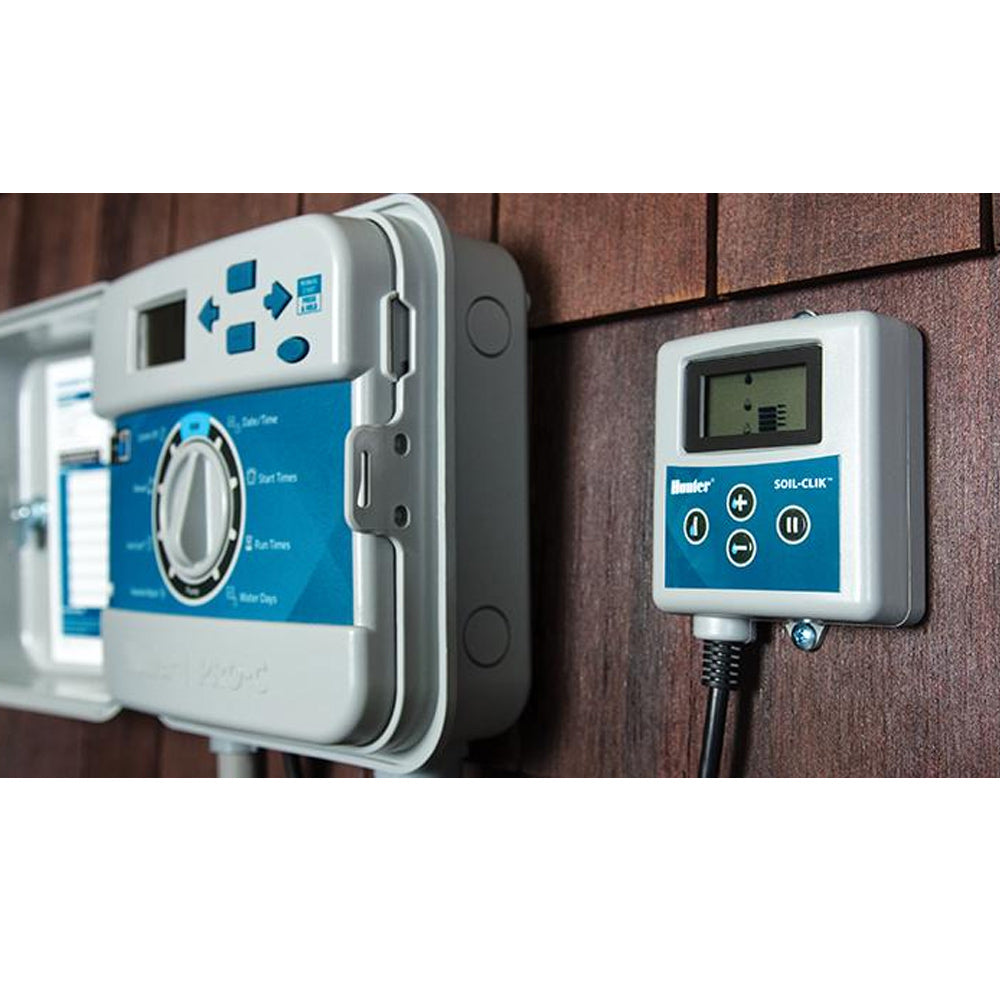

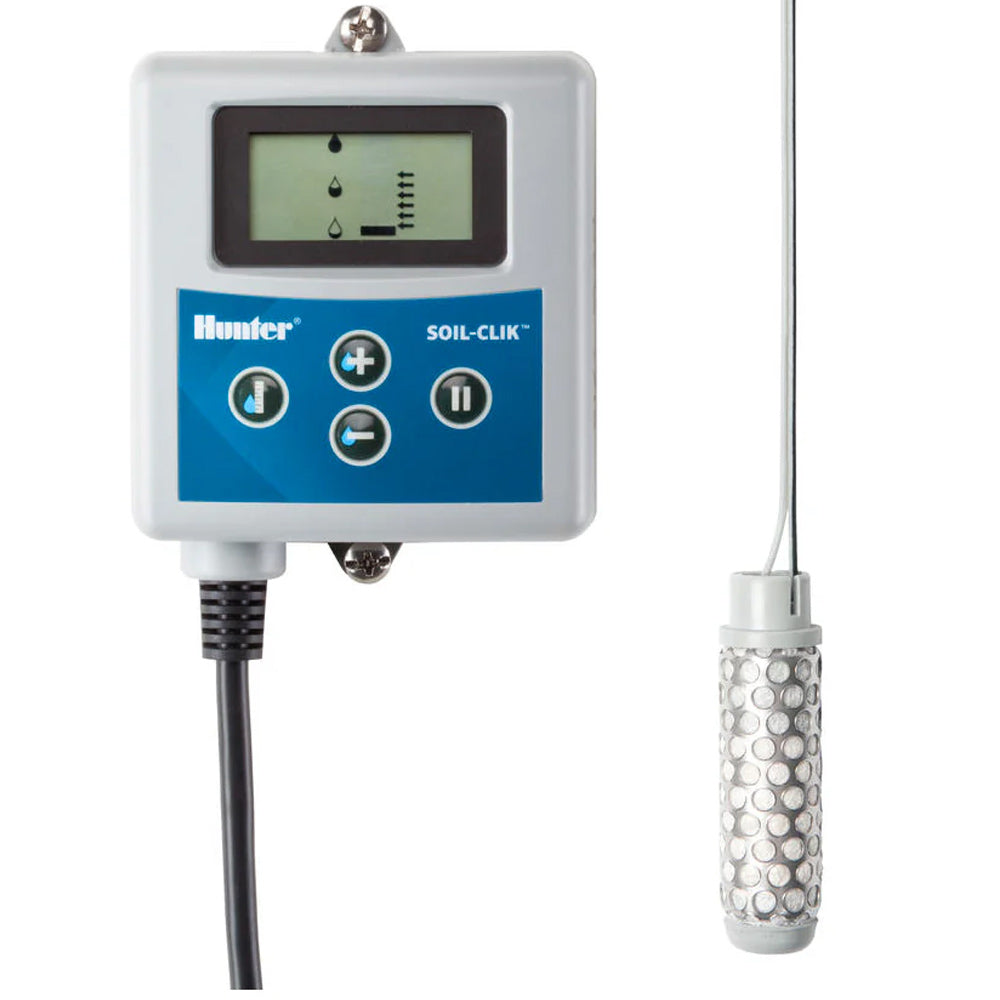

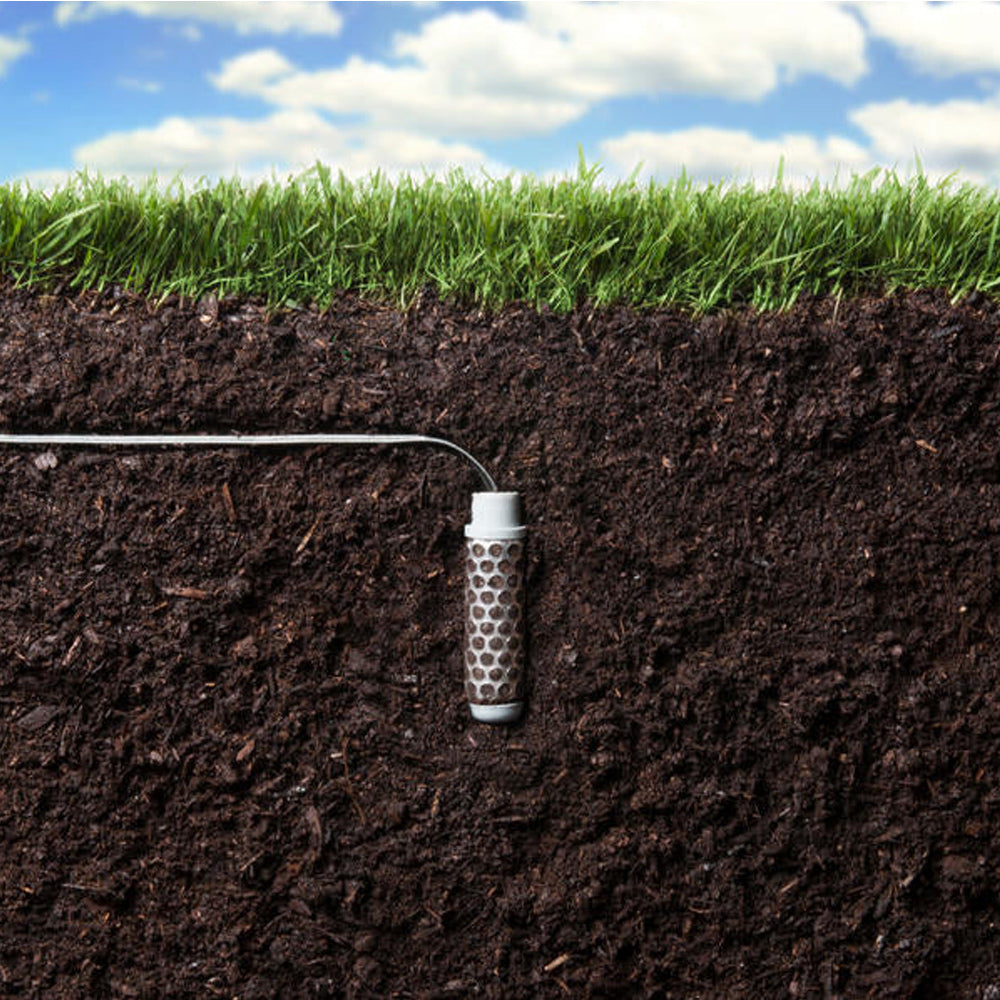

Turn your hunter controller into a smart controller with our Hunter Soil Clik Moisture Sensor. Designed to detect moisture levels in the soil and shutdown irrigation if soil moisture reaches a preset threshold. The pre-set moisture levels can be easily adjusted on the included module. To install just wire your module and probe individually into your controller. For best results, plant the moisture sensor upright, in a root zone and in an area with full sun exposure for the most accurate soil moisture data. Just allow 2-3 days for the sensor to acclimate to soil conditions. Check out our range of Hunter irrigation supplies to complete your setup.
 |
Features
- Compatible with the hunter ACC, ACC2, HC, HCC, HPC, I-Core, ICC2, PCC, Pro-C, Pro-HC, X2 and X-Core controllers.
Specifications
- Switch rating (24 VAC): 5 A.
- Input power (24 VAC): 100 mA.
- Output power: Normally closed dry-contact closure.
- 1.82m maximum distance from Soil-Clik module to the controller.
- 304.8m maximum distance from Soil-Clik module to sensor probe for AC installations.
- 30.48m maximum distance for NODE-BT installations.
- Approvals: UL, cUL, FCC, CE, RCM.
- Warranty period: 5 years.
