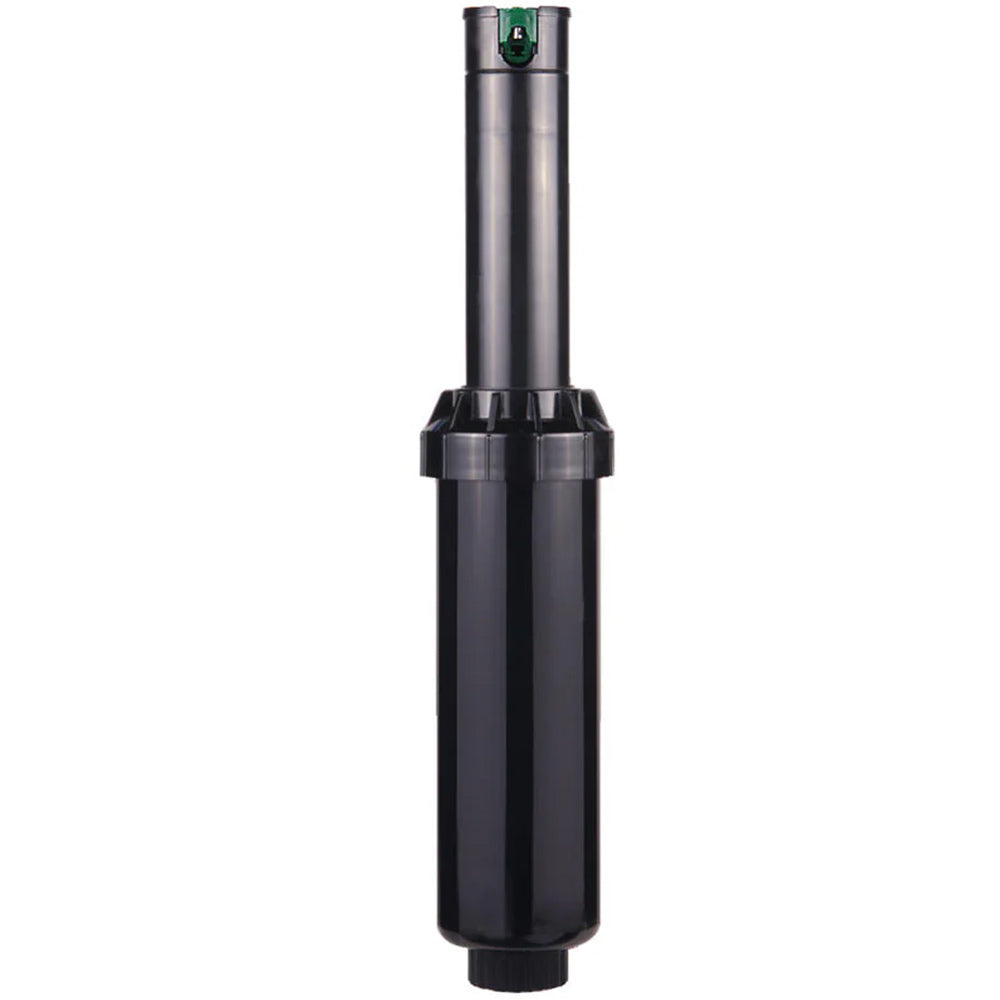

Hunter SRM 100mm Rotor Pop-Up Sprinkler

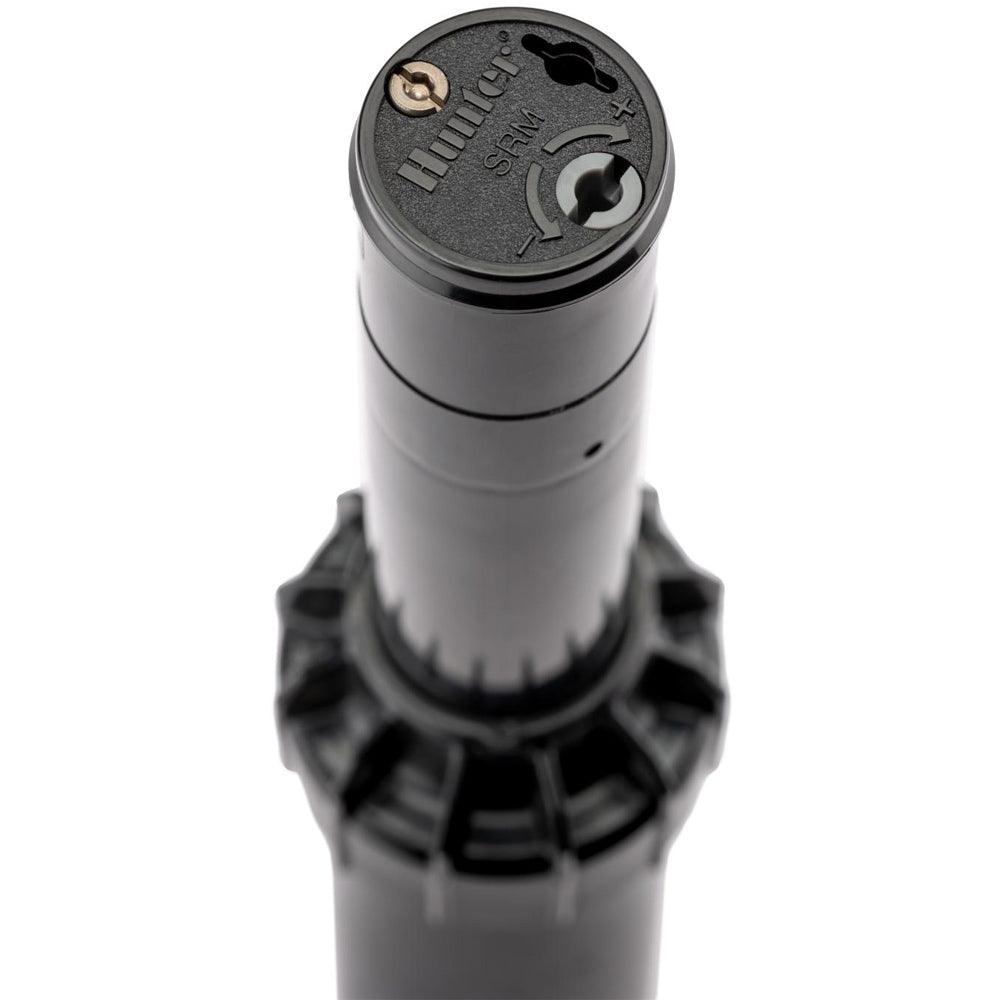

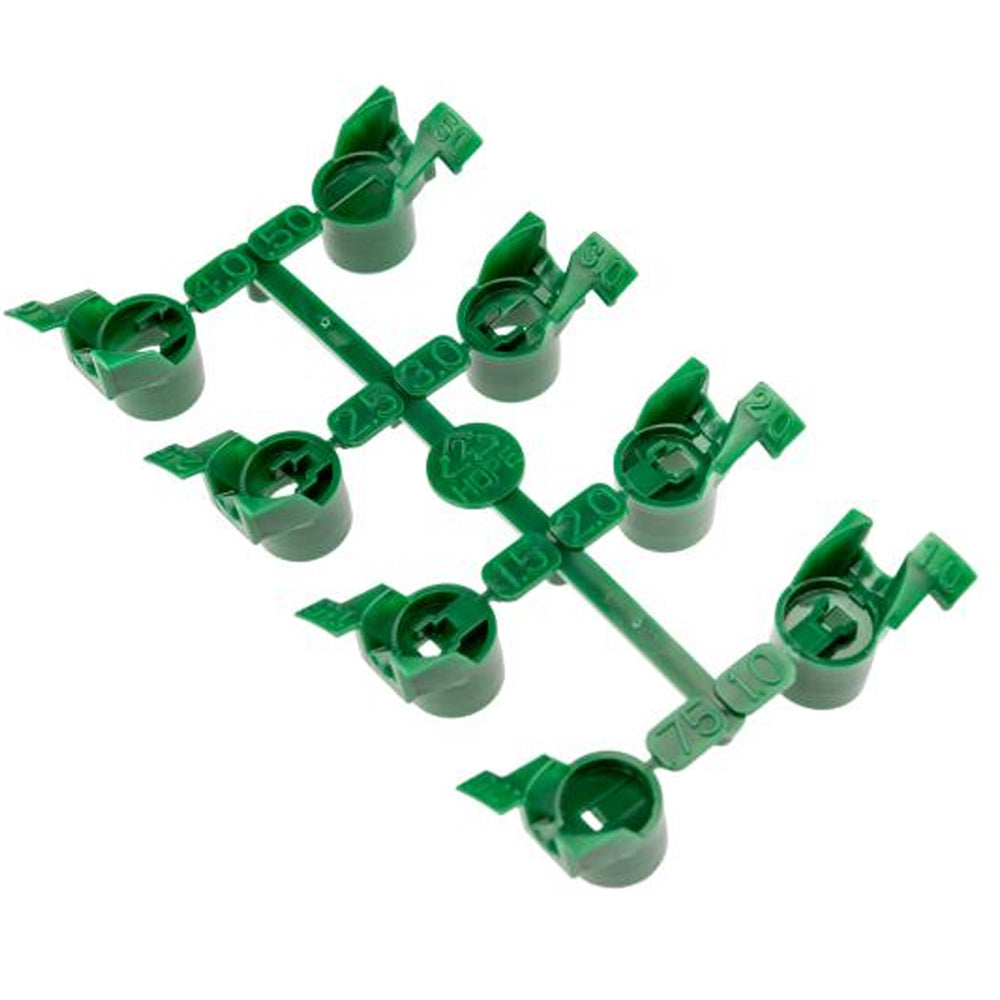

For a great rotary sprinkler option check out our Hunter SRM 100mm Rotor Pop-Up Sprinkler. Just use a slotted screwdriver or a hunter wrench for easy adjustment and use the supplied 8 nozzles to vary your spray. Check out our range of Hunter irrigation supplies to complete your setup.
 |
Features
-
Model: 10cm popup.
- QuickCheck™ Arc Mechanism for fast arc adjustment.
-
Easy arc adjustment.
- Arc Setting: 40 to 360 Degrees.
- Nozzle range: 0.50 to 3.0
Specifications
- Nozzle choices: 8.
- Radius: 4.0m to 9.4m.
- Flow Rate: 0.08 to 0.82 m3/hr; 1.4 to 13.7 l/min.
- Recommended pressure range: 1.7 to 3.8 bar; 170 to 380 kPa.
- Operating pressure range: 1.4 to 7 bar; 140 to 700 kPa.
- Precipitation rates: 11 mm/hr approx.
- Nozzle trajectory: 18 degrees approx.
