Hide Concrete Pour Lineal Drain Kit 1m with Form Work Kit

HideSKU: HCLDK01

Price:
Sale price$470.00
Stock:
In stock
 More payment options

Description

Hide Concrete Pour Lineal Drain Kit 1m with Form Work Kit

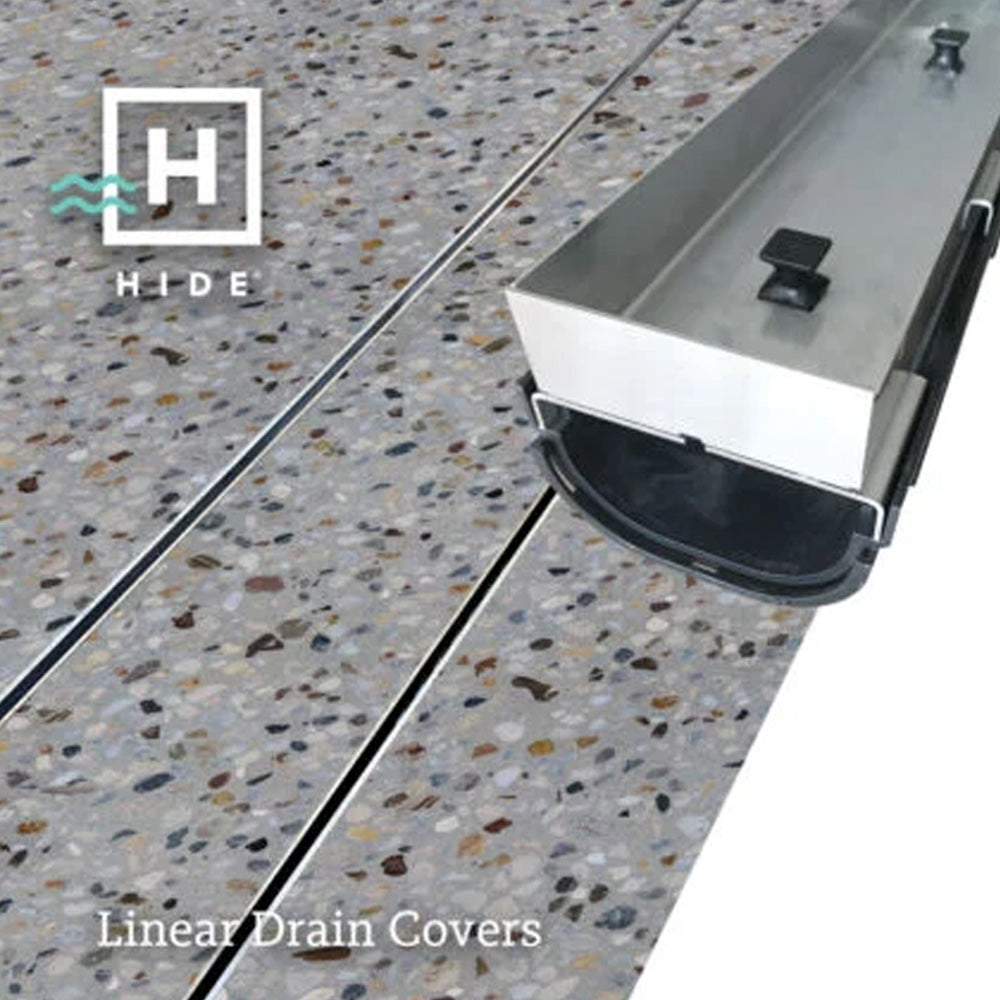

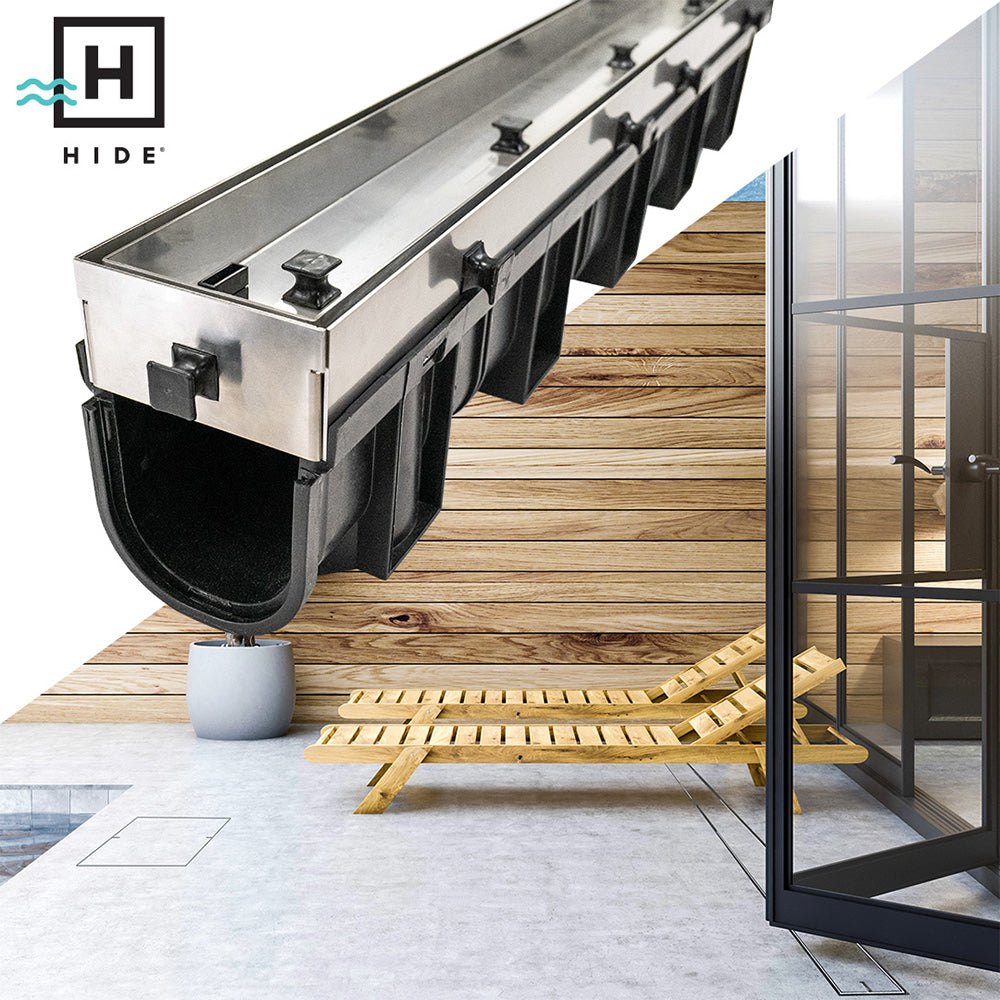

For a new concrete strip drain solution check out our Hide Concrete Pour Lineal Drain Kit 1m. Coming with an insert made with a stainless steel measuring 1000mm in length. The brand new, fit-for-purpose concrete wet-pour linear drain is a first of its kind. 40mm in depth, this sturdy, robust and removable concrete strip-drain cover is discrete and a first-class addition to any new landscape. The concrete lid includes 4 linear bridges to support the concrete inlay on top of the drainage channel, 4 attached lugs to help bond the concrete with the stainless steel lid and 2 keyformers that are used to make a gap so that the drain inlay can easily be replaced with the included key.

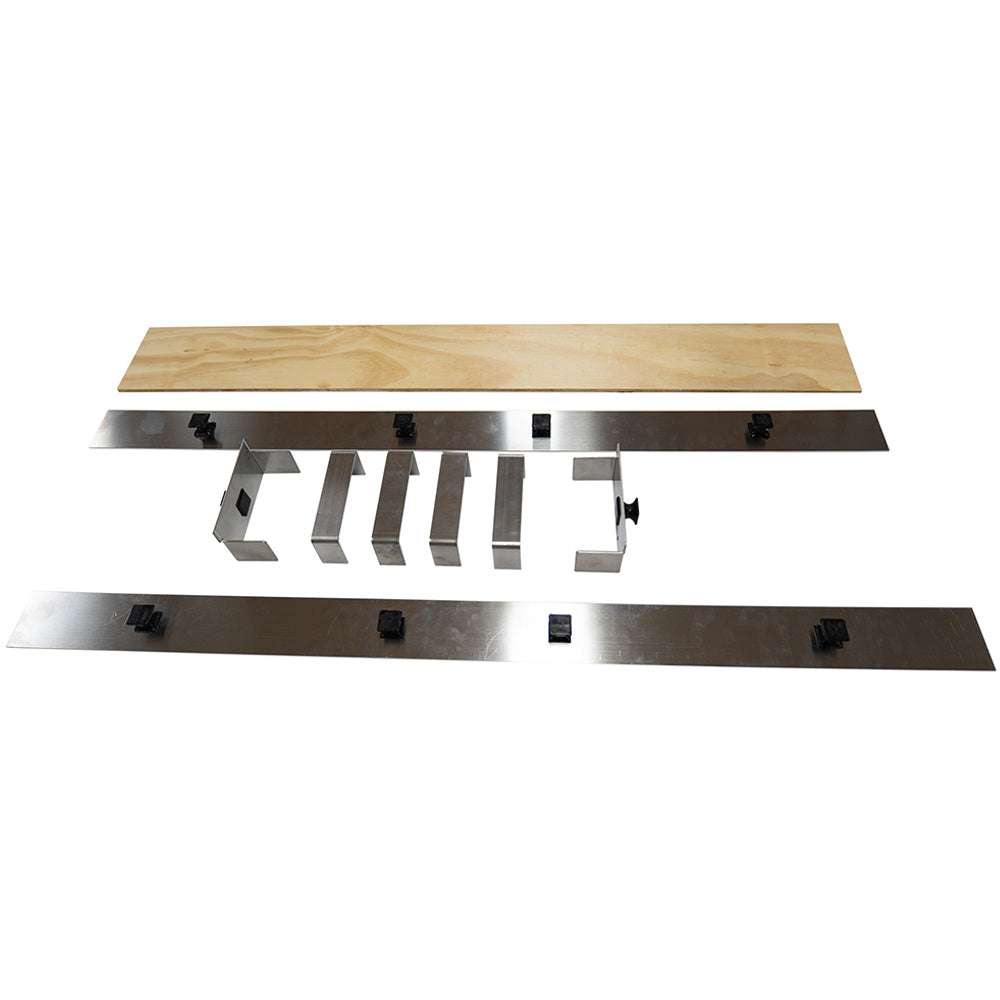

Also included is the formwork pictured in the 3rd image. Designed to help form the concrete bond around the lid and maintain the integrity of the channel. The formwork kit includes two edge protectors that slot straight into the Everhard channel, four bridges, 2 endcaps and one timber cover plate that stabilises the formwork, while pouring liquid agriate around the channel. Check out our range of Hide skimmer lids for more!

 Note: Everhard Channel Not Included.

 Features

  • Covers a 20mm deep recess with a width of 125mm.
  • Compatible with Everhard Channel (Sold separately).
  • Easily Removed Modular lengths @ 1000mm.
  • 40mm Depth.
  • Centralising Tabs; A world first in design.
  • Inlay with your selected surface finish.
  • Once applied you will have Non-Slip.
  • 10-year warranty.
  • Flexible installation features

What's Included?

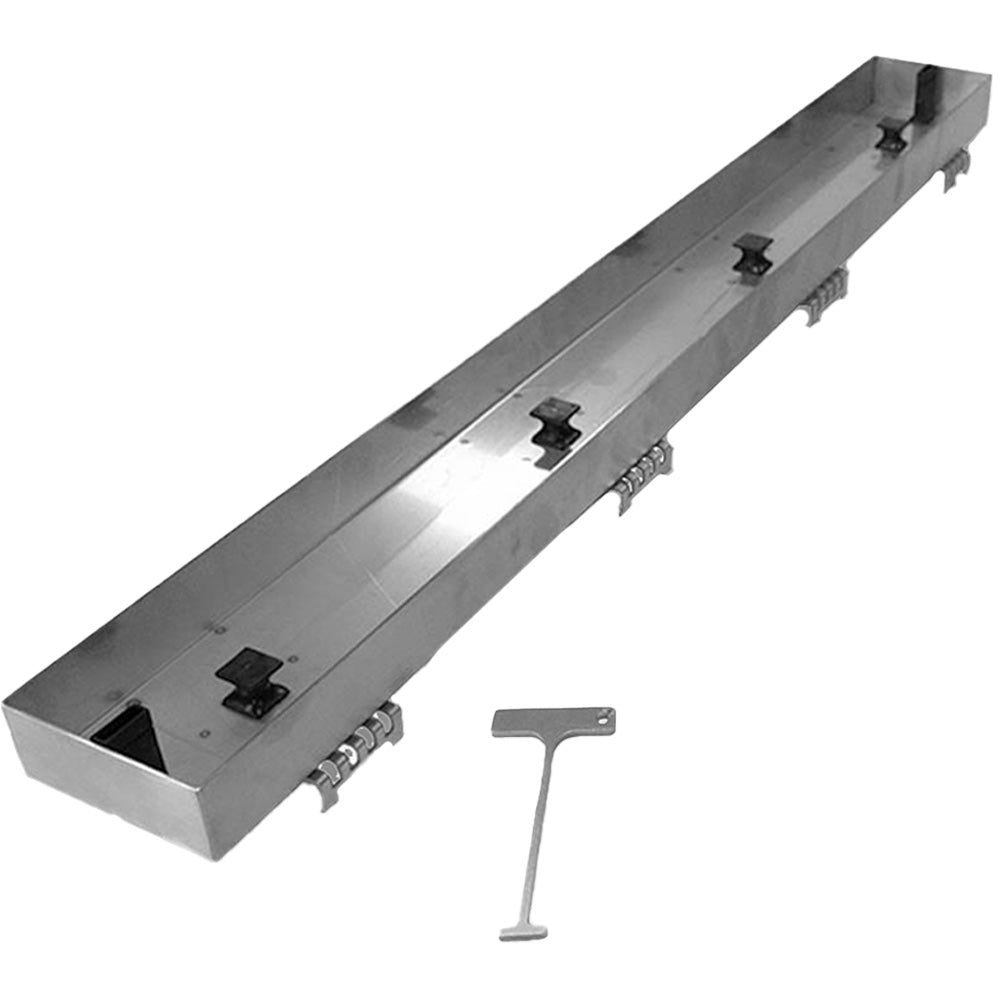

  • 1 x linear lid 1000mm.
  • 4 x linear bridges (Attached).
  • 4x Lugs (Attached).
  • 2x Keys.
  • Formwork Kit.

Form Work Kit Inclusions

  • 2x Endcaps with Lugs.
  • 4x Bridges.
  • 2x Edge Protectors with Lugs.
  • Timber Cover plate.

Other Accessories Available (Sold Separately)
